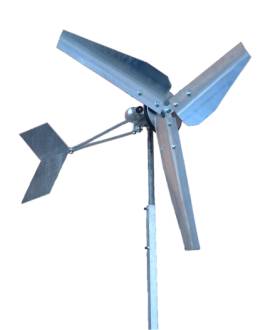

Alu Windrad

12 Volt 6 Watt

Sprinters from aluminum and galvanized stealing hurrying

to the loading of a small car battery

Free-wheel, automatic storm disconnection,

ball-bearing

low-friction ballbbearing, easily start also with weak wind

Control: - wind adjustment with flag,

with storm the wheel is swivelled automatically off the wind

(axial load-controlled)

- the vertical axis of the rotor is fastened with 2 screws

to a pipe (like picture above)

Generator - 2x3 Watt of direct current generators,

friction wheel translation with free-wheel more particularly

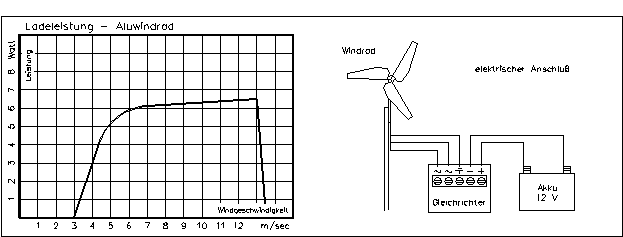

12 V of electric rectifiers for direct link to a car battery, 5 m cables

Price (inkl. MWSt.) 82.- EURO- protectected by European Patent

Thümler GmbH 90455 Nürnberg Hans Traut Str. 25 Germany

Tel: (0) 9122 - 78711 Fax: (0) 9122 – 73127 e-mail: grip@osc.de

Diplomarbeit zum Thema: Grundlagen der Windenergie, Berechnung und Erprobung des Aluwindrades

siehe:

Bauanleitung siehe:
